Modular Blast Chillers & Shock Freezers

American Panel's modular series of blast chillers and shock freezers make site restrictions a thing of the past. These units are assembled in the field, the same way a typical walk-in is erected. No more wondering how you're going to get that large piece of equipment through the door. The modular series also features a consolidated evaporator fan assembly. This places all of the components within the cabinet on one side, which greatly reduces the overall footprint of the unit. American Panel quality and precision in a flexible format to fit your needs. Customize your unit with any of the typical HURRiCHiLL accessories.
INTRODUCING THE NEW AP20-XL

Built for Versatility and Performance

The next big addition to the HURRiCHiLL blast chiller family, the AP20-XL. Versatility and performance are at the core of the AP20-XL. This is not just a modular version of our popular AP20 unit, it is a redesigned example of versatility, performance and American Panel quality.

AP20-XL

LEARN MORE CUT SHEET FLYER

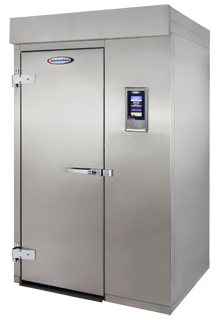

AP20BC-1T
Accepts (1) 26"W x 32"D x 7312"H Mobile Rack 200 lb. Chill Capacity Soft Chill/Hard Chill 51"W x 44"D x 88"H 208/60/1

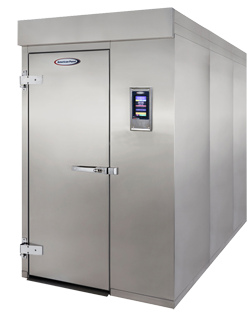

AP20BC-3T
Accepts (3) 26"W x 32"D x 7312"H Mobile Racks 600 lb. Chill Capacity Soft Chill/Hard Chill 51"W x 120"D x 88"H 208/60/1
AP26BC-1T
Accepts (1) 26"W x 36"D x 7312"H Mobile Rack 260 lb. Chill Capacity Soft Chill/Hard Chill 55"W x 48"D x 88"H 208/60/1
AP26BC-3T
Accepts (3) 26"W x 36"D x 7312"H Mobile Racks 780 lb. Chill Capacity Soft Chill/Hard Chill 55"W x 132"D x 89 18"H 208/60/1
AP36BC-1T
Accepts (1) 31"W x 38"D x 7312"H Mobile Rack 360 lb. Chill Capacity Soft Chill/Hard Chill 60"W x 50"D x 88"H 208/60/1
AP36BC-3T
Accepts (3) 31"W x 38"D x 7312"H Mobile Racks 1,080 lb. Chill Capacity Soft Chill/Hard Chill 60"W x 138"D x 89 18"H 208/60/1
AP46BC-1T
Accepts (1) 35"W x 39"D x 7312"H Mobile Rack 460 lb. Chill Capacity Soft Chill/Hard Chill 64"W x 51"D x 88"H 208/60/1
AP46BC-3T
Accepts (3) 35"W x 39"D x 7312"H Mobile Racks 1380 lb. Chill Capacity Soft Chill/Hard Chill 64"W x 141"D x 89 18"H 208/60/1
AP20BCF-1T
Accepts (1) 26"W x 32"D x 7312"H Mobile Rack 200 lb. Chill Capacity 120 lb. Freeze Capacity 51"W x 44"D x 88"H 208/60/1
AP20BCF-3T
Accepts (3) 26"W x 32"D x 7312"H Mobile Racks 600 lb. Chill Capacity 360 lb. Freeze Capacity 51"W x 120"D x 89 18"H 208/60/1
AP26BCF-1T
Accepts (1) 26"W x 36"D x 7312"H Mobile Rack 260 lb. Chill Capacity 156 lb. Freeze Capacity 55"W x 48"D x 88"H 208/60/1
AP26BCF-3T
Accepts (3) 26"W x 36"D x 7312"H Mobile Racks 780 lb. Chill Capacity 468 lb. Freeze Capacity 55"W x 132"D x 89 18"H 208/60/1
AP36BCF-1T
Accepts (1) 31"W x 38"D x 7312"H Mobile Rack 360 lb. Chill Capacity 216 lb. Freeze Capacity 60"W x 50"D x 88"H 208/60/1
AP36BCF-3T
Accepts (3) 31"W x 38"D x 7312"H Mobile Racks 1,080 lb. Chill Capacity 648 lb. Freeze Capacity 60"W x 138"D x 89 18"H 208/60/1
AP46BCF-1T
Accepts (1) 35"W x 39"D x 7312"H Mobile Rack 460 lb. Chill Capacity 276 lb. Freeze Capacity 64"W x 51"D x 88"H 208/60/1
AP46BCF-3T
Accepts (3) 35"W x 39"D x 7312"H Mobile Racks 1,380 lb. Chill Capacity 828 lb. Freeze Capacity 64"W x 141"D x 89 18"H 208/60/1
